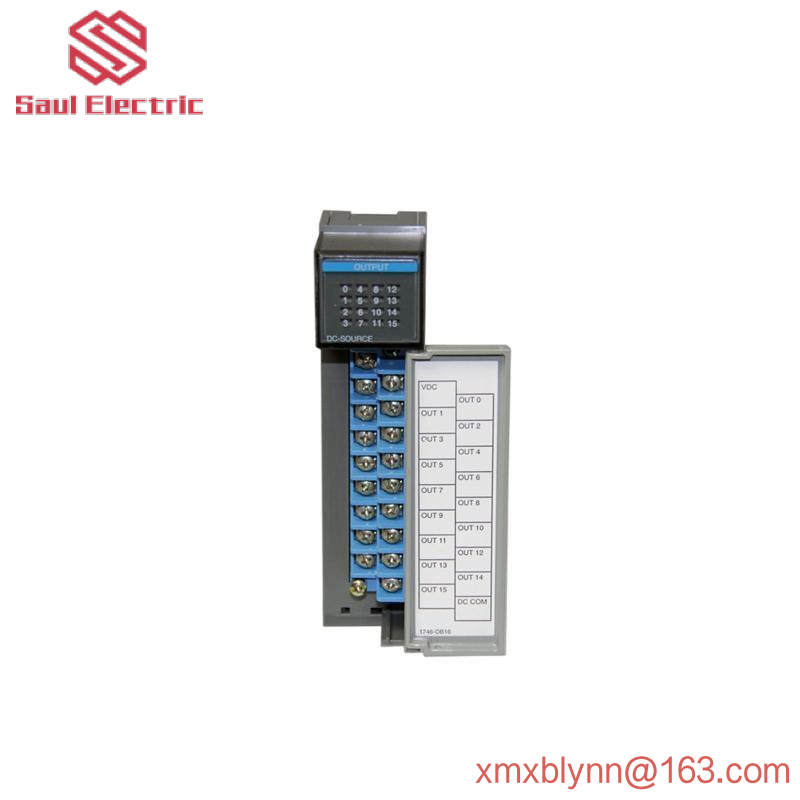

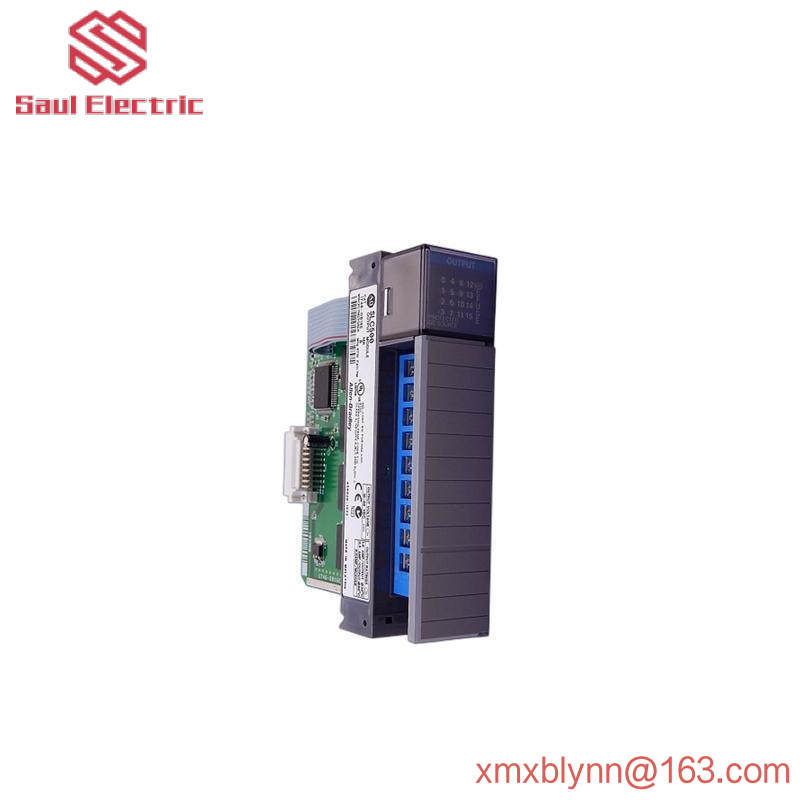

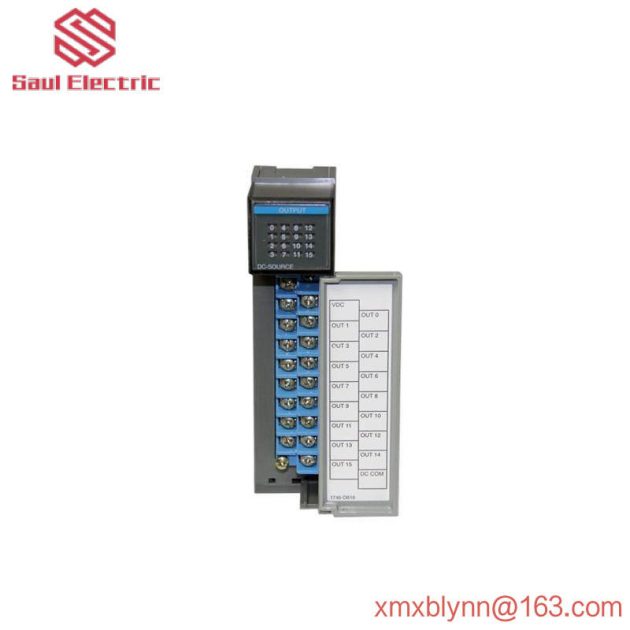

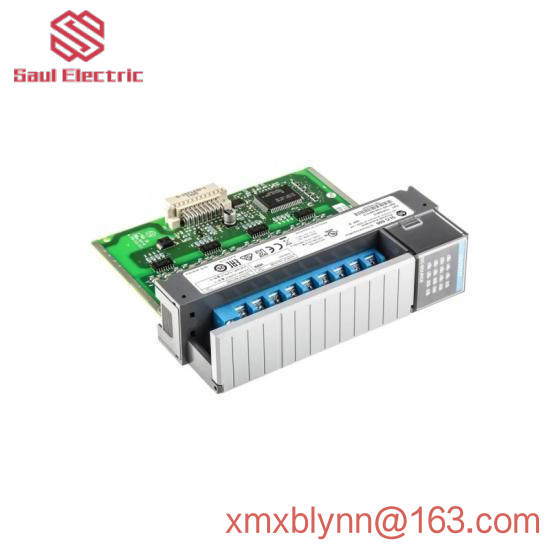

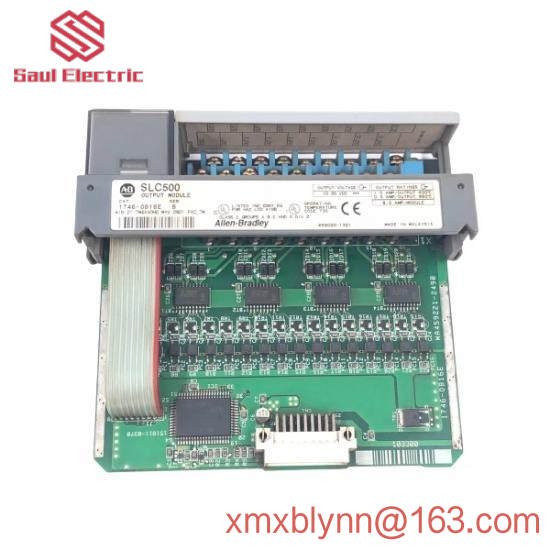

Manufacturer:Allen Bradley
Model Number:1746-OB16
Module Type:Digital DC Output Module
Number of Channels:16
Input Voltage:24 VDC
Output Voltage Range:10 – 50 VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load Capacity:1 MA
Backplane Current Rating:0.28 A
Continuous Current Per Output:0.25 A at 60°C
Continuous Current Per Module:4 A at 60°C
Isolation Voltage:{“Communication Circuits”:”500 VDC”,”Backplane”:”1500 VAC”}
Processor Compatibility:SLC 500
Temperature Rating:0 – 60°C
Environmental Conditions:5 – 95% Relative Humidity
The AB 1746-OB16 Digital DC Output Module is an essential component for any industrial automation system. Designed with 16 digital DC output channels, it ensures high reliability and performance even in demanding environments. Its compact design allows for easy installation and integration into existing control systems. With a wide input voltage range and robust isolation features, this module is suitable for various industrial applications, from manufacturing lines to process control systems. The module supports continuous current ratings that ensure stable operation over time, making it a reliable choice for engineers and technicians alike. The open-type enclosure ensures proper ventilation and heat dissipation, while the chassis mounting option simplifies installation and maintenance. Additionally, its temperature rating and environmental conditions make it adaptable to different climates and environments, ensuring consistent performance.
