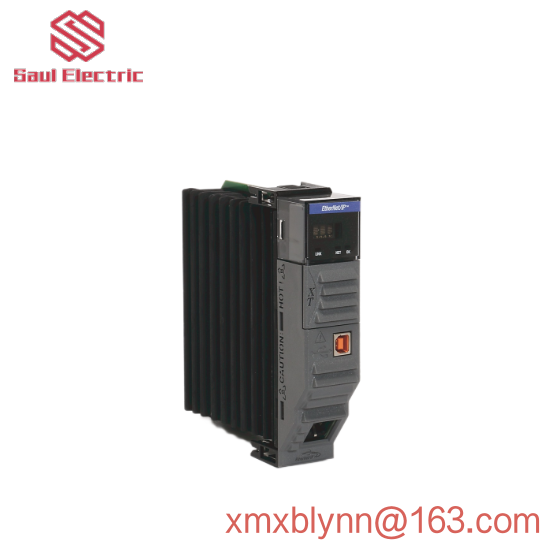

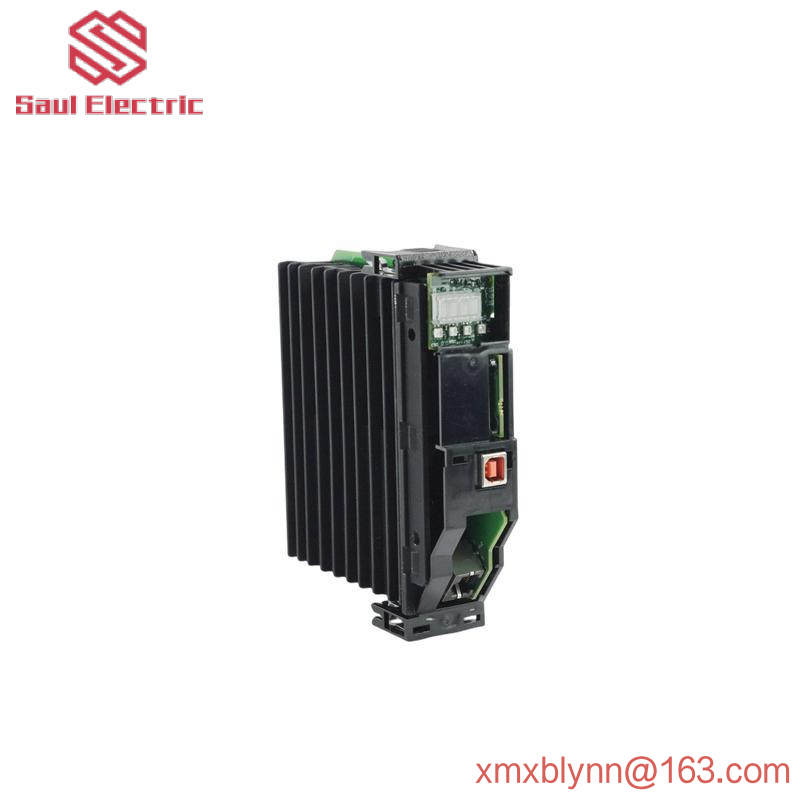

Allen-Bradley 1756-EN2TXT EtherNet/IP Bridge Module

Manufacturer:Allen Bradley

Model Number:1756EN2T

Communication Protocol:Ethernet/IP Bridge

Power Supply:3 MA at 24 VDC

Communication Speed:10/100 MBPS

Enclosure:Open Type

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V Continuous

Humidity Range:5 – 95% Non-Condensing Relative Humidity

Vibration:2 G

Shock:30 G

Interface:Ethernet, USB Port

Connection Cables:802.3 Compliant Shielded or Unshielded Twisted Pair

    The Allen-Bradley 1756-EN2TXT EtherNet/IP Bridge Module is designed for seamless integration into industrial automation systems. It ensures reliable and efficient communication between devices and networks by utilizing the advanced EtherNet/IP protocol. This module is equipped with a robust power supply system capable of delivering up to 3 MA at 24 VDC, making it suitable for demanding industrial environments. Its high-speed communication speed of 10/100 MBPS allows for rapid data transfer, improving overall system performance. The module is designed to operate within a wide temperature range from 0°C to 60°C, ensuring consistent operation even in extreme conditions. With a power dissipation of 5.1 W and continuous isolation up to 30 V, it provides reliable performance under various environmental conditions. The module’s interface includes Ethernet and USB ports, allowing for easy connectivity and configuration. Additionally, it supports 802.3 compliant shielded or unshielded twisted pair cables for secure and efficient data transmission. The 1756-EN2TXT module is built to withstand vibrations up to 2 G and shocks up to 30 G, making it ideal for use in rugged industrial settings. By integrating this module into your industrial automation system, you can achieve higher efficiency, reduced downtime, and improved system reliability.
